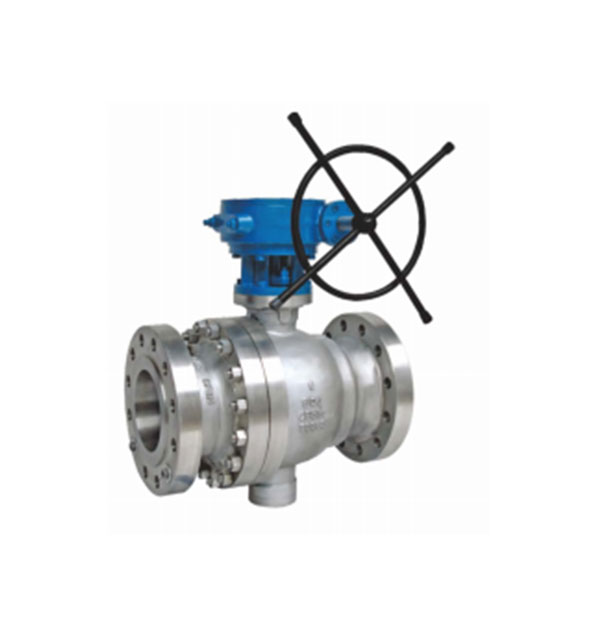

China Trunnion Mounted Ball Valve

Name: Trunnion Mounted Ball Valve
Brand: Utmost Flow Control Technology Co., Ltd.
Availability: InStock

As one of the best trunnion mounted ball valve China suppliers, UTMOST provides high quality trunnion style ball valve with ball valve trunnion service. The rear of the steel ring is equipped with a spring to ensure that the oem ball valve seat is tightly attached to the ball. Keep it sealed. Both the upper and lower China trunnion mounted ball valve stems are equipped with PTFE bearings to reduce friction and save labor. The bottom of the small shaft is equipped with an adjustment plate to ensure the joint position of the ball and the sealing ring. Full bore diameter: The flow aperture of the trunnion style ball valve is the same as the inner diameter of the pipeline, so that the pipeline can be cleaned. Contact our control valve manufacturing company now!

GET A QUOTE

Trunnion Mounted Ball Valve Technical Specification

Size: 1/2"~38"

Pressure: Class ANSI #150~2500

Body material: Carbon steel, Stainless steel, Duplex, or others

Standard compliance: API 6D, BS5351, ASME B16.34 or equivalents

End connections: Flanged, R.F, RTJ, Welded

Optional locking device or stem extension

Full port or regular bore; double block and bleed

Trunnion Mounted Ball Valve Datas

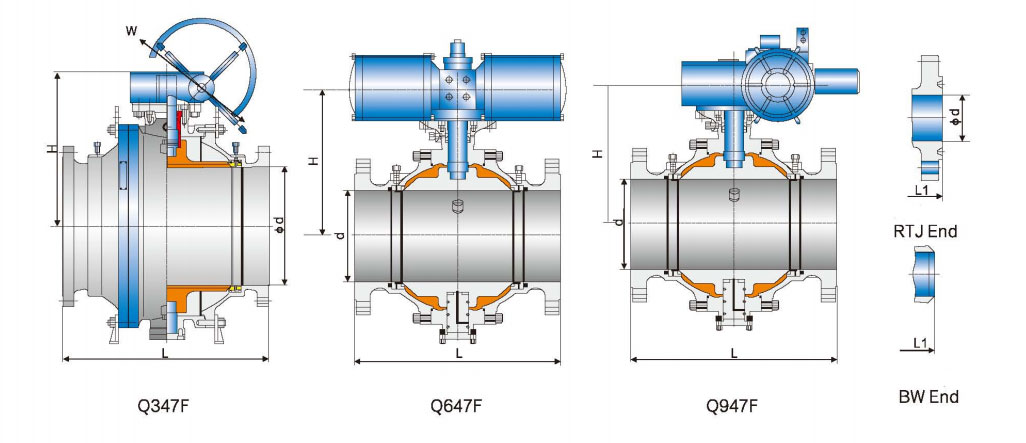

Main Connection Dimensions of Trunnion Type Ball Valve

Main Connection Dimensions of Trunnion Mounted Ball Valve

CLASS150Lb

NPS	in	2	2¹/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36
DN	mm	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900
L	in	7	7.5	8	9	15.5	18	21	24	27	30	34	36	42	45	49	51	54	60
(RF)	mm	178	190	203	229	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524
L1	in	8.5	9.5	11.12	12	18	20.5	22	25	30	33	36	39	45	49	53	55	60	68
(BW)	mm	216	241	283	305	457	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	1727
H	in	4	6	7	9.25	9.88	11	12.62	15.38	16.5	21.88	23.62	25	28	29.5	31.5	34	36	38.5
H	mm	120	150	180	235	250	280	320	390	420	555	600	635	710	750	800	865	915	980
W	in	16	16	24	24	24	24	32	32	32	32	32	32	32	40	40	40	40	40
W	mm	400	4	600	600	600	600	800	800	800	800	800	800	800	1000	1000	1000	1000	1000
WT	RF	28	35	55	80	190	290	445	570	780	1520	2300	2500	3950	4890	6300	7100	8950	13500
(KG)	BW	25	28	49	71	182	277	423	553	747	1481	2266	2460	3904	4939	6362	8149	9000	13570

CLASS300Lb

NPS	in	2	2¹/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36
DN	mm	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900
L	in	8.5	9.5	11.12	12	15.88	19.75	22.38	25.5	30	33	36	39	45	49	53	55	60	-
(RF)	mm	216	241	283	305	403	502	568	648	762	838	914	991	1143	1245	1346	1397	1524	-
L1	in	8.5	9.5	11.12	12	18	20.5	22	25	30	33	36	39	45	49	53	55	60	-
(BW)	mm	216	241	283	305	457	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	-
H	in	4	6	7	9.25	9.88	11	12.62	15.38	16.5	21.88	23.62	25	28	29.5	31.5	34	36	-
H	mm	120	150	180	235	250	280	320	390	420	555	600	635	710	750	800	865	915	-
W	in	16	16	24	24	24	24	32	32	32	32	32	32	32	40	40	40	40	-
W	mm	400	400	600	6	600	600	800	800	800	800	800	800	800	1000	1000	1000	1000	-
WT	RF	30	40	60	90	200	325	490	690	990	1810	2620	2860	4430	5430	6810	7655	9590	-
(KG)	BW	24	31	49	72	169	280	424	598	872	1665	2440	2635	4075	4880	6225	7115	9230	-

CLASS600Lb

NPS	in	2	2¹/2~	3	4	6	8	10	12	14	16	18	20	24	26	28
DN	mm	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700
L	in	11.5	13	14	17	22	26	31	33	35	39	43	47	55	57	61
(RF)	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549
L1	in	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12	35.12	39.12	43.12	47.25	55.38	57.5	61.5
(BW)	mm	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562
H	in	6.5	7	7.88	11	12.25	14	16.12	18	19.25	21	24.88	2562	30.12	31.88	34.62
H	mm	165	180	200	280	310	355	410	455	490	535	630	650	765	810	880
W	in	16	24	24	24	32	32	32	32	32	32	40	40	40	40	40
W	mm	400	600	600	600	800	800	800	800	800	800	1000	1000	1000	1000	1000
WT	RF/RTJ	34	53	65	125	245	505	640	910	1380	2250	3400	3850	4900	6700	8300
(KG)	BW	27	43	49	95	188	418	495	740	1185	1960	3050	3406	4275	6025	7590

CLASS900Lb

NPS	in	2	2¹/2	3	4	6	8	10	12	14	16	18	20	24
DN	mm	50	65	80	100	150	200	250	300	350	400	450	500	600
L	in	14.5	16.5	15	18	24	29	33	38	40.5	44.5	48	52	61
(RF)	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
L1	in	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.88	44.88	48.5	52.5	61.75
(BW)	mm	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
H	in	6.72	7.5	8.25	11.38	12.62	15.38	17	18.5	20.88	24	26	27.5	30.75
H	mm	170	190	210	290	320	390	430	470	530	610	660	700	780
W	in	24	24	24	32	32	32	32	32	32	40	40	40	40
W	mm	600	600	600	800	800	800	800	800	800	1000	1000	1000	1000
WT	RF/RTJ	45	65	73	135	360	650	930	1350	1890	3100	4300	4950	7100
(KG)	BW	37	53	56	98	291	545	760	1145	1650	2750	3875	4410	6485

CLASS1500Lb

NPS	in	2	2¹/2	3	4	6	8	10	12	14	16
DN	mm	50	65	80	100	150	200	250	300	350	400
L	in	14.5	16.5	18.5	21.5	27.75	32.75	39	44.5	49.5	54.5
(RF)	mm	368	419	470	546	705	832	991	1130	1257	1384
L1	in	14.62	16.62	18.62	21.62	28	33.12	39.38	45.12	50.25	55.38
(BW)	mm	371	422	473	549	711	841	1000	1146	1276	1407
H	in	6.75	7.5	8.25	11.38	13	15.75	17.38	22	25.25	27.12
H	mm	170	190	210	290	330	400	440	560	640	690
W	in	24	24	32	32	32	32	32	40	40	40
W	mm	600	600	800	800	800	800	800	1000	1000	1000
WT	RF/RTJ	55	75	95	150	540	880	1360	1980	3100	4650
(KG)	BW	40	55	65	115	420	865	1025	1555	2600	3930

CLASS2500Lb

NPS	in	2	2¹/2	3	4	6	8	10	12	14	16
DN	mm	50	65	80	100	150	200	250	300	350	400
L	in	17.75	20	22.75	26.5	36	40.25	50	56	-	-
(RF)	mm	451	508	578	673	914	1022	1270	1422	-	-
L1	in	17.88	21.25	23	26.88	36.5	40.88	50.88	56.88	-	-
(BW)	mm	454	540	584	683	927	1038	1292	1445	-	-
H	in	7.5	9	11	14.12	15.75	18.88	20.5	26.38	-	-
H	mm	190	230	280	360	400	480	520	670	-	-
W	in	24	32	32	32	32	40	40	40	-	-
W	mm	600	800	800	800	800	1000	1000	1000	-	-
WT	RF/RTJ	68	95	120	185	675	1100	1650	2300	-	-
(KG)	BW	54	74	91	122	555	918	1355	2950	-	-
