China Floating Ball Valve

Name: Floating Ball Valve
Brand: Utmost Flow Control Technology Co., Ltd.
Availability: InStock

UTMOST, a floating ball valve manufacturer, offers different floating ball valve types at a good float ball price. The floating ball valve has a simple structure and good sealing performance, but the load of the working medium on the sphere is all transmitted to the outlet sealing ring. Therefore, it is necessary to consider whether the sealing ring material can withstand the working load of the sphere medium. When subjected to higher pressure impact, the sphere may shift. This valves and controls structure is generally used for medium and low-pressure ball valve and float.

GET A QUOTE

Floating Ball Valve Application of Norms

Flange dimensions to ANSI B 16.5
Face to face dimensions to ANSI B 16.10
Floating ball valve design and Manufacture in accordance with API 6D
Valve tested to API 598

Floating Ball Valve Datas

Materials of Water Tank Ball Float Main Parts

Main Performance Specification of SS Ball Float Valve

Main Connection Dimensions of Floating Ball Valve

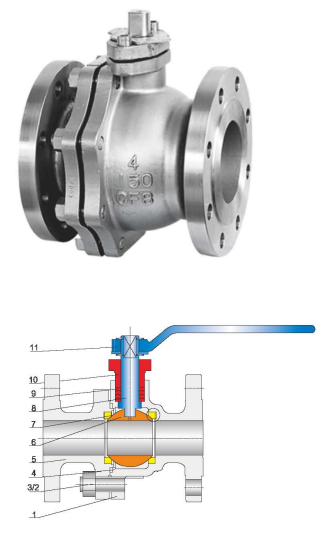

Materials of Floating Ball Valve Main Parts

No.	Parts Name	Material
No.	Parts Name	Stainless Steel	Cast Steel
1	Body	A351 CF8	A216WCB
2	Stud	A193 B8	A193 B7
3	nut	A1942H	A1942H
4	Gasket	PTFE	PTFE
5	Valve cover	A351 CF8	A216WCB
6	Ball	A182 F304	A182 F304
7	Seat	PTFE	PTFE
8	Stem	A182 F6	A182 F6a
9	packing	PTFE	PTFE
10	Gland	A182 F304	WCB
11	Handle	A351 CF8	A216WCB

Performance Specification		Pressure Grade (class)
		150	300	400	600
Testing Pressure (Mpa)	Shell test	2.93	7.58	10	15
	Seal test	2.07	5.52	7.31	11.03
	Air test	0.6Mpa
Applicable Temperature	- 196Ps550°c (Different Materials for Different Operating Temperatures)
Applicable Medium	Ordinary type	Water, Steam, Petroleum, LPG, Natural gas, etc.
	Antisulphur type	Natural gas containing H2S and CO, petroleum, etc

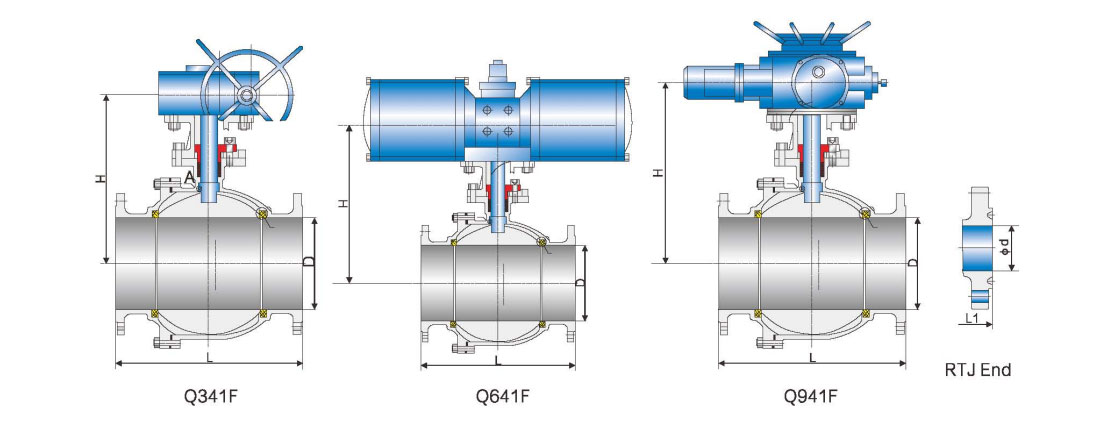

Main Performance Specification of Floating Ball Valve

CLASS150Lb

DN		15	20	25	32	40	50	65	80	100	125	150	200	250
NPS		1/2	3/4	1	1¹/4	1¹/2	2	2¹/2	3	4	5	6	8	10
L	RF	108	117	127	140	165	178	190	203	229	356	394	457	533
L	RTJ	119	130	140	153	178	191	203	216	242	369	407	470	546
d		14	19	25	32	38	51	64	76	102	127	152	203	254
W	Hand wheel	140	140	150	180	200	250	300	350	500	800	800	1000	-
W	Gearbox	-	-	-	-	-	-	-	305	305	305	305	400	140
H	Handwheel	85	90	99	105	126	140	165	178	230	280	310	350	-
H	Gearbox	-	-	-	-	-	-	-	-	380	405	460	550	706
Weight(kg)	Handwheel	3	4	5	7	8	12	18	24	38	60	82	145	-
Weight(kg)	Gearbox	-	-	-	-	-	-	-	-	53	79	102	185	280

CLASS300Lb

DN		15	20	25	32	40	50	65	80	100	125	150	200
NPS		1/2	3/4	1	1¹/4	1¹/2	2	2¹/2	3	4	5	6	8
L	RF	140	152	165	178	190	216	241	283	305	381	403	502
L	RTJ	151	165	178	191	203	232	257	299	321	397	419	518
d		14	19	25	32	38	51	64	76	102	127	152	203
W	Handwheel	140	140	150	180	200	250	300	350	500	800	800	1000
W	Gearbox	140	150	180	200	250	300	350	500	800	800	1000	-
H	Handwheel	85	90	99	105	126	142	165	178	230	280	310	350
H	Gearbox	85	90	99	105	126	142	165	178	230	280	310	350
Weight(kg)	Handwheel	3	5	6	8	11	16	24	34	56	86	125	222
Weight(kg)	Gearbox	-	-	-	-	-	-	-	52	76	124	163	267

CLASS600Lb

DN		15	20	25	32	40	50	65	80	100
NPS		1/2	3/4	1	1¹/4	1¹/2	2	2¹/2	3	4
L	RF	165	190	216	229	241	292	330	356	432
L	RTJ	164	190	216	229	241	295	333	359	435
d		14	19	25	32	38	51	64	76	102
W	Handwheel	140	140	200	200	250	300	350	500	650
W	Gearbox	-	-	-	-	-	-	305	305	-
H	Handwheel	79	83	114	120	125	156	172	220	250
H	Gearbox	-	-	-	-	-	-	-	370	400
Weight(kg)	Handwheel	5	7	9	13	17	25	42	56	85
Weight(kg)	Gearbox	-	-	-	-	-	-	-	76	123
