Size: DN25-DN400 1 ～ 16''
Pressure: PN 16-40 ANSI 150/300
Body material: Carbon steel, Stainless steel, or others
Trim materials: Stainless steel (std.)
End connections: Flanged
Size: DN25-DN300 1 ～ 12''
Pressure: PN63-160 ANSI 600/900
Body material: Carbon steel, Stainless steel, or others
Trim materials: Stainless steel (std.)
End connections: Flanged

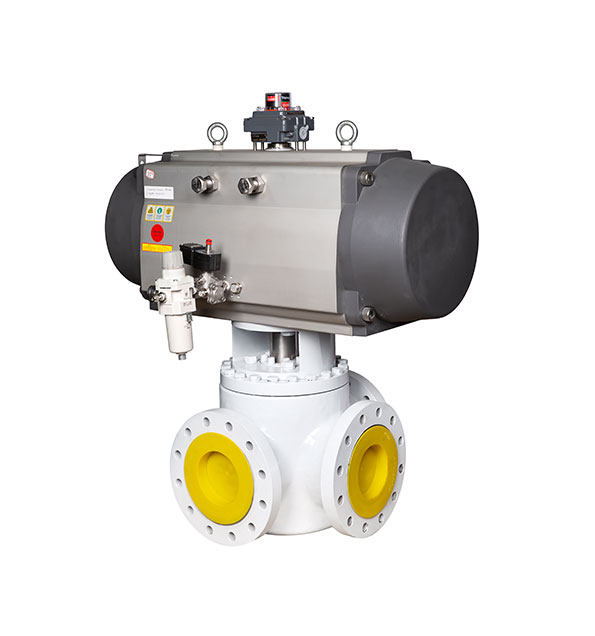

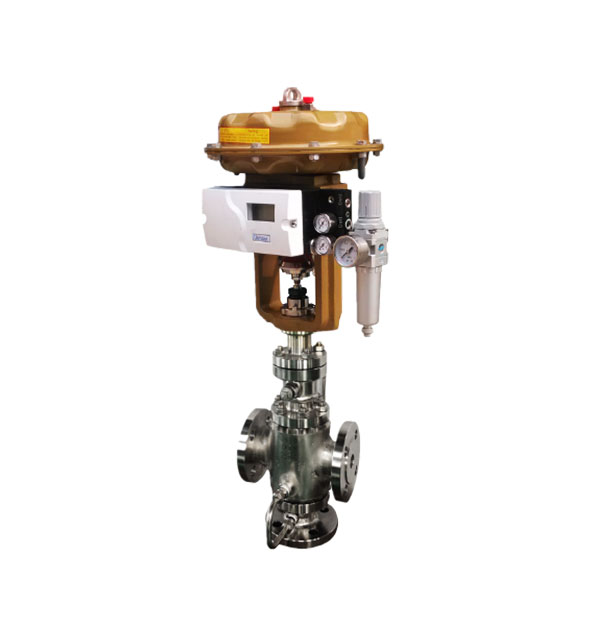

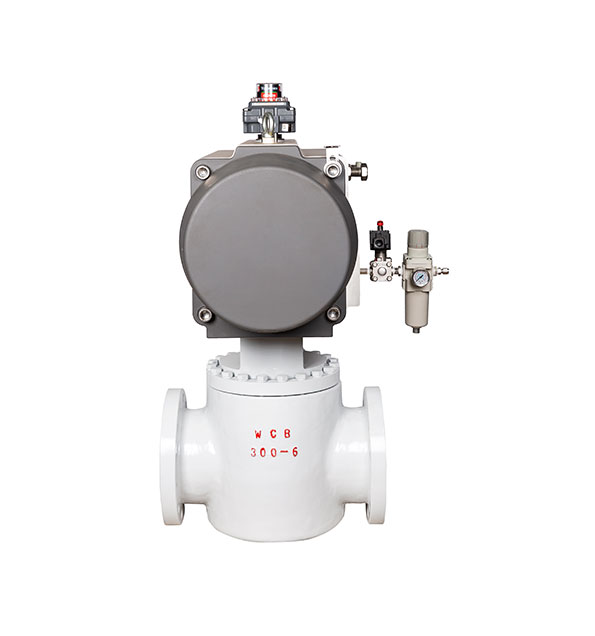

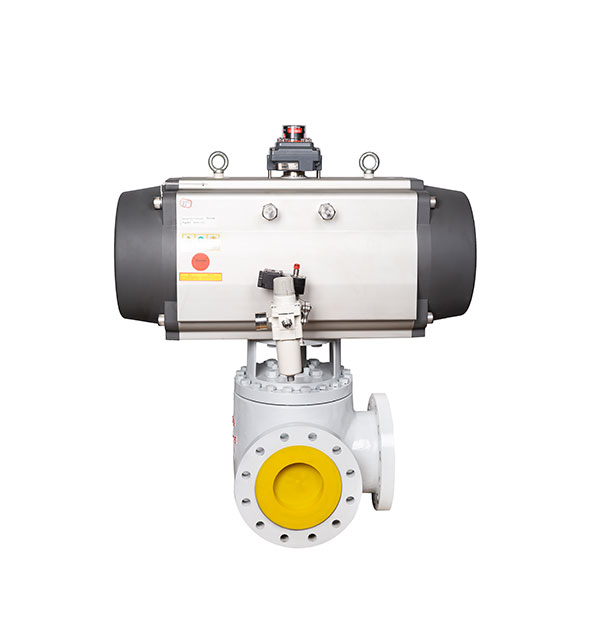

As one of the best 3 way control valve manufacturers in China, our 3 way control valve factory provides high quality three way control valve at good wholesale prices. This 3 way automatic control valve adopts double spool up and down guide structure, equipped with pneumatic actuator, the valve body is a control valve 3 way structure, that is, one inlet and two outlets (split type), two inlets and one outlet (combined type), so as to achieve fluid mixing heating or cooling, or fluid diversion of varying amounts to meet the different types of control valves sizing standard and requirement of different industries and mines. For more other valve control system specifications request, please contact with Utmost china valve factory.

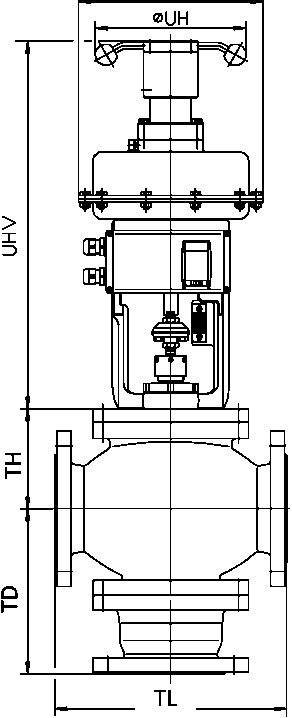

T220 Unit: mm
| Normal Diameter | TL | TD | TH | |||||
| ANSI 150 | ANSI 300 | ANSI 150 | ANSI 300 | Fl | F2 | F3 | F4 | |
| 1" | 184 | 197 | 92 | 98 | 114 | 170 | 170 | 228 |
| 11/2" | 222 | 235 | 111 | 117 | 105 | 167 | 167 | 233 |
| 2" | 254 | 267 | 127 | 133 | 105 | 167 | 167 | 233 |
| 3" | 298 | 318 | 149 | 159 | 156 | 248 | 248 | 365 |
| 4" | 352 | 368 | 176 | 184 | 181 | 267 | 267 | 389 |
| 6" | 451 | 473 | 225 | 236 | 260 | 355 | 355 | 575 |
| 8" | 543 | 568 | 271 | 289 | 295 | 410 | 410 | 605 |
| 10" | 673 | 708 | 336 | 354 | 360 | 510 | 510 | 850 |
| 12" | 737 | 775 | 368 | 387 | 395 | 545 | 545 | 850 |
| 14" | 889 | 927 | 445 | 463 | 465 | 615 | 615 | 880 |
| 16" | 1016 | 1057 | 508 | 529 | 520 | 670 | 670 | 960 |
T260 Unit: mm
| Normal Diameter | TL ANSI 600 | TD ANSI 600 | TH | |||
| Fl | F2 | F3 | F4 | |||
| 1" | 216 | 108 | 135 | 170 | 170 | * On request |
| 11/2" | 241 | 121 | 160 | 240 | 240 | |
| 2" | 292 | 146 | 190 | 270 | 270 | |
| 3" | 356 | 178 | 250 | 315 | 315 | |
| 4" | 432 | 216 | 275 | 355 | 355 | |
| 6" | 559 | 279 | 335 | 490 | 490 | |
| 8" | 660 | 330 | 410 | 480 | 480 | |
| 10n | 787 | 394 | * | * | * | |
| 12H | 838 | 419 | * | * | * | |
For more other specifications request please contact with Utmost.
